Excavator attachments concrete block breaker wall hydraulic pile breaker

FOB Reference Price:Get Latest Price
US $10,000-35,200 / Sets | 1 Set/Sets (Min. Order)
Model Number:
BY-PB600LQ
Compatible Brand:
KUBOTA HITACHI WIRTGEN Sany Terex Atlas Copco LIEBHERR MANITOWOC Hyundai Komatsu Oshkos Kobelco LiuGong Metso VOLVO DOOSAN Jcb Other XGMA CATERPILLAR Lonking XCMG
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China (Mainland)
Brand Name:
BEIYI
Warranty:
6 month
After-sales Service Provided:
Online support
Place of Origin::
Jiangsu China(Mainland)
Brand Name::
BEIYI
Type::
concrete block breaker
Color::
As customer's requested
Packing method::
Wooden box packing
Products Capacity::
20 sets/month
Product Material::
No.45 steel
Port::
Shanghai
After-service::
Offering after-sales support services
Condition::
New
Supply Ability
Supply Ability:
30 Set/Sets per Month Excavator attachments concrete block breaker wall hydraulic pile
Packaging & Delivery
Packaging Details
Concrete block breaker packing with wooden box
Port
shanghai port or as you request
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(day) 15 To be negotiated
Video Description

Excavator attachments concrete block breaker wall hydraulic pile breaker



Product Description

BEIYI MACHINERY Hydraulic pile breaker can break such like cast-in-place piles, precast piles etc. It can be divided into round and square by the pile shape. Our hydraulic pile breaker is widely used in high-speed railway bridges and civil building pile foundation engineering. Normally hydraulic round pile breaker can break pile diameter from 600-2200mm and hydraulic square pile breaker is suitable for square piles from 300-650mm. Our machine can meet the requirements of all kinds of large-scale infrastructure construction.

BEIYI MACHINERY Hydraulic pile breaker is the most advanced and can achieve high efficiency, low noise in pile broken.
It has the advanced modularization and break different diameter pile by different number of modular combination.

It has high cost performance, low operating cost and its cost performance is nearly the same with the foreign products.

* It operates easily and don’t need any professional skill, besides, it operates very safely.

* It can be connected to a variety of engineering machinery to make achieve of products’ commonality and economical efficiency. It also can be hanged in the excavators, cranes and telescopic arm, etc.

* High life design can bring you the best benefits.



Hydraulic Pile Breaker Working Principle



BEIYI MACHINERY hydraulic pile breaker offer its several cylinders oil pressure through power source and cylinder directly drive the chisels and squeeze the pile body at the same time to break the pile. It operates easily and has high effiency, low noise, low cost in the pile cutting construction process, which is suitable for pile group in construction engineering. Hydraulic pile breaker machine adopts highly modular combinations and connect modules through axis pins. It can break piles in certain ranges of diameter by different number of modules combination.

Hydraulic Pile Breaker Performance Parameter



Max Thrust320KN

Single cylinder

maximum flow

20L/min

Outer sized

 (Length * Width * Height)

1880*748*920mm
Max Cylinder Trip200mmSingle breaking size300mmMachinery Tonnage20T
Max Cylinder Pressure30MpaCut Pile Dia300-600mmTotal Weigth1650KG

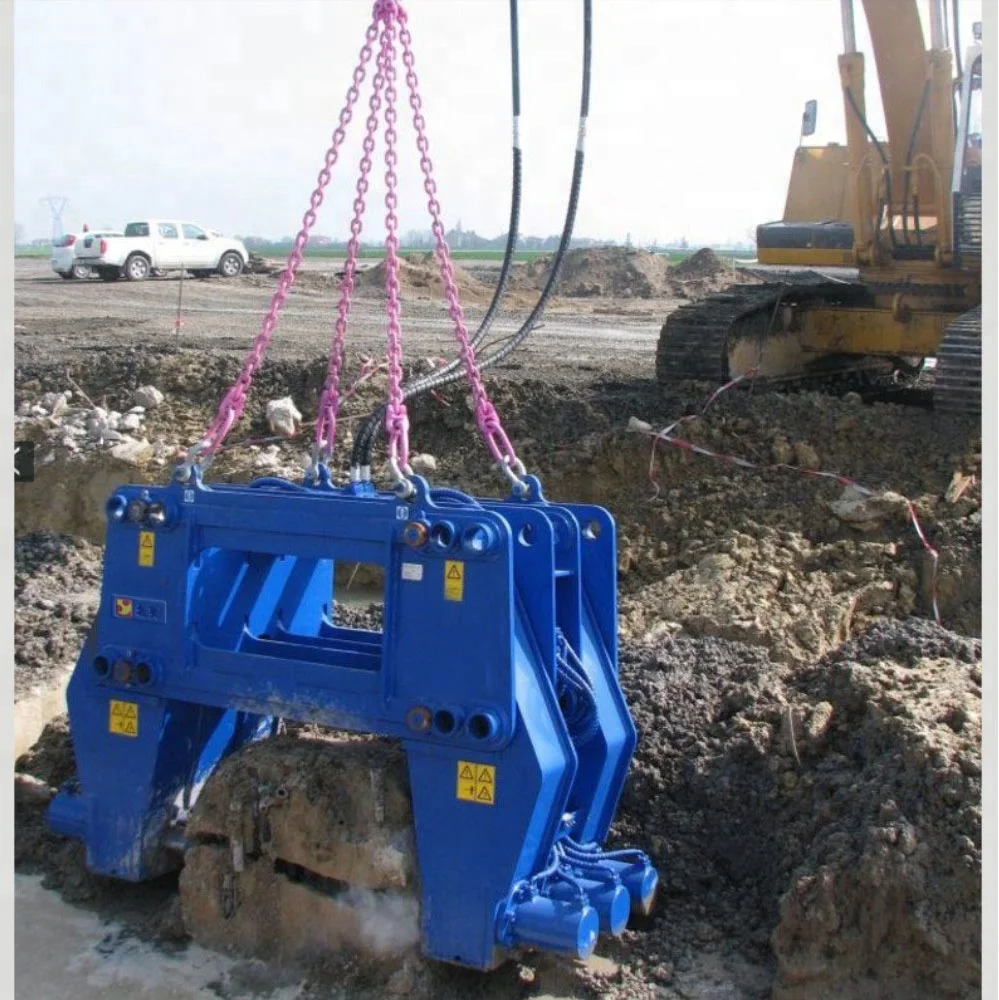

Hydraulic Pile Breaker Project Site



Please click pictures below to see more details
Main products



Trade show



Packaging & Shipping

 We packed with standard wooden box, single module packed in individual small box and several box bundled into pallet.

Our Services

Wuxi Beiyi Excavator Spare Parts Factory warmly welcome our customers' inquiry about all kinds of pilling foundation machines and construction products.



We can offer professional technical supports and good after sale service for your orders.



We have a stronger R&D team who can develop and produce the special machines according to your requests.

Company Information

Wuxi Beiyi Excavator Parts Factory is located in Wuxi famous industrial town Luoshe town. Our factory was founded in the year of 2011; we are one of the most professional manufacturer in China engaged in developing, producing and selling engineering machinery and oil cylinder accessories.



Our main products are hydraulic pile breaker, hydraulic shears, H-beam pile drawing machine, hydraulic earth drill, tree spade, mini crawler loader and excavator spare parts.



Beiyi Machinery will keep growing and try to become the leading factory in our industry. We warmly welcome you to visit our factory!

FAQ

1. Q:How to chose the modules?

    A: Please kindly advise your pile diameter, your pile concrete grade, and your project situation, we will help you to decide the numbers of the modules.



2. Q: Is your pile breaker dangerous for work?

    A: Our machine operate contact-free and there is no impact force on the piles, so our machine is not dangerous for work.



3. Q:Is your module changeable or fixed?

    A:Our module round pile breaker is changeable, you can combine freely according to your different pile diameter, the modules can be assembled and disassembled easily and conveniently.
We also can custom made for your small round piles which is fixed with 5 modules.



4. Q:Do you offer after-sale service?

    A: Yes, we will offer you machine operation instructions. 6 months of warranty time will offer to our customer dating from the receipt day. Besides, we will offer some spare parts for free and life long technical instruction.



5. Q:Is your machine working with noisy?

    A: We got CE approved and our machine working with low noisy which can meet environmental protection.
