BEIYI H-beam hydraulic pile extractor machine maximum for 28 meter sheet pile

  • >=1 Sets
    $25,000.00
Model Number:
BY-BZJ-300lS BY-BZJ-300lS BY-BZJ-300lS BY-BZJ-300lS
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China
Brand Name:
BEIYI
Working environment:
pool
Appilcation:
Foundation Construction
Hydraulic Power Station:
Need
Model Number:
BY-BZJ-300lS
Rated Pulling Force:
300 t
Oil cylinder distance:
adjustable
Specifications For H-beam:
500mm-700mm
Feture:
Double oil cylinder
Rated working pressure:
30Mpa
Color:
Optional
Supply Ability
Supply Ability:
30 Set/Sets per Month
Packaging & Delivery
Packaging Details
Stretch Film in,Standard Wooden Box Outside Or As Requests
Port
shanghai
Lead Time :
Shipped in 15 days after payment
Video Description

BEIYI H-beam hydraulic pile extractor machine maximum for 28 meter sheet pile



Product Description

Beiyi hydraulic pile extractor is designed for drawing out the steel H-pile from a diameter from 500mm to 700mm, with lifting capability of 300T.

Bacically, we have two styles of such pile extractor BY-BZJ-300DS and BY-BZJ-300LS. Both are operated by hydraulic pressure station with an wireless remote control, which can improve your working effciency greatly.

Advantages

1.Double oil cylinder can adjust speed frequency

2.Chassis stability is strong.

3.The distacnce between the oil cylinder can be adjusted which is more easy to work in different

environment.

4.Double cylinder can adjust speed frequency.

Adopts new method , gains from now on...



You need up to 40 minutes to pull a 20 meters long Hbeam by using traditional pile drawing machine while only 15 minutes needed by using our pile extractor. About 50 piles can be pulled per day and the work efficiency is improved more than doubled . Integrated design is more easy to operate and can save more manpower which just need 2 operating staffs.





Model

Nominal

 working pressure

Rated pile

 drawing force

H-beam

 specification

Max.Flow

Max.clamping

force

 BYPM300LS 32MPa200t300mm-800mm160L/min260t
Model

Nominal

working pressure

Rated pile

drawing force

H-beam

specification

 Max.Flow

 Max.clamping

force

BYPM200DS32MPa135t200mm-500mm160L/min220t

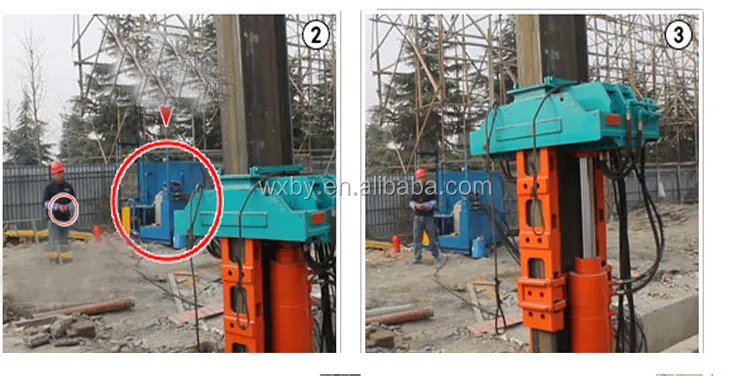

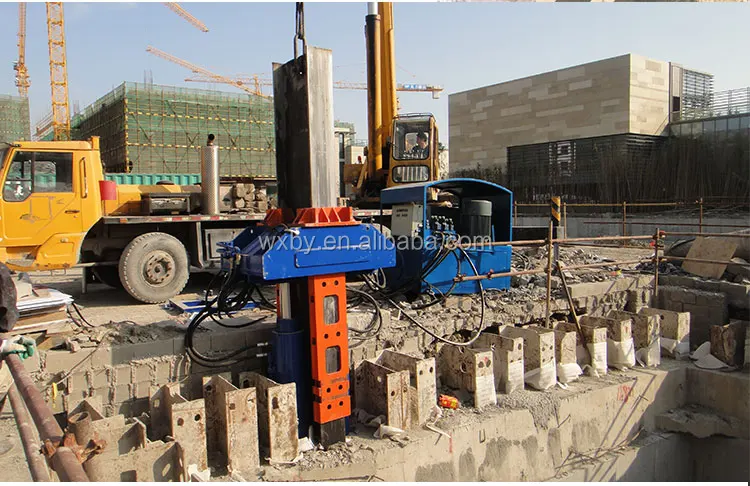

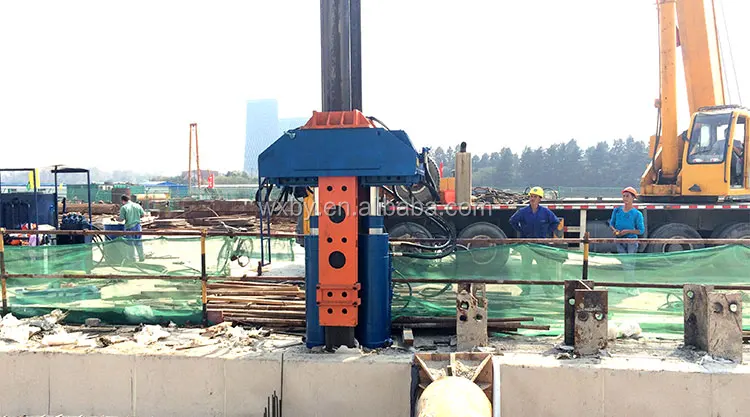

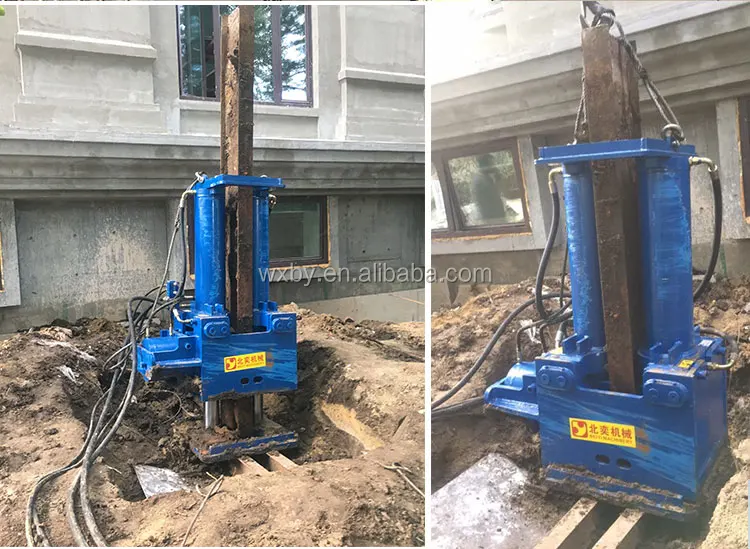

Construction picture

Please ciick products below to see more details
Main products



 Trade show



Company Information

Wuxi Beiyi Excavator Parts Factory is located in Wuxi famous industrial town Luoshe town. Our factory was founded in the year of 2011; we are one of the most professional manufacturer in China engaged in developing, producing and selling engineering machinery and oil cylinder accessories.

Our main products are hydraulic pile breaker, hydraulic shears, H-beam pile drawing machine, hydraulic earth drill, tree spade, mini crawler loader and excavator spare parts.

Beiyi Machinery will keep growing and try to become the leading factory in our industry. We warmly welcome you to visit our factory!

Packaging & Shipping

We packed with standard wooden box.

Our Services



Wuxi Beiyi Excavator Spare Parts Factory warmly welcome our customers' inquiry about all kinds of pilling foundation machines and construction products.



We can offer professional technical supports and good after sale service for your orders.



We have a stronger R&D team who can develop and produce the special machines according to your requests.

FAQ

1. Q:How to chose the model?

    A: Please kindly advise your pile size so that we can help you to chose the correct model.



2. Q: Is your pile pulling machine dangerous for work?

    A: Our machine operate contact-free and there is no impact force on the piles, so our machine is not dangerous for work.



3. Q:Do you offer after-sale service?

    A: Yes, we will offer you machine operation instructions. 6 months of warranty time will offer to our customer dating from the receipt day. Besides, we will offer some spare parts for free and life long technical instruction.



4. Q:Is your machine working with noisy?

    A: We got ISO9001 approved and our machine working with low noisy which can meet environmental protection.
