BEIYI Mini Excavator Mounted Hydraulic Powered Earth Auger Drill

FOB Reference Price:Get Latest Price
$2,000.00 - $25,000.00 / Sets | 1 Set/Sets (Min. Order)
Compatible Brand:
Other Hyundai VOLVO HITACHI CATERPILLAR Jcb MANITOWOC Sany Sumitomo Komatsu LiuGong Kubota Kobelco LIEBHERR Oshkos Doosan Atlas Copco XCMG Terex Lonking Metso XGMA
Model Number:
BY-AD60
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 Negotiable
Customization:
Customized logo (Min. Order: 1 Sets)
Customized packaging (Min. Order: 1 Sets)

More

Graphic customization (Min. Order: 1 Sets) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
BeiYi
Warranty:
6 month
After-sales Service Provided:
Online support
Application:
Ground Drilling
Working Medium:
Soil,Frozen Earth,Soil With The Rock
Power System:
Hydraulic
Vehical Weight:
≥2T
Length:
0.5M~3M Or As Your Request
Dimeter:
100~1200mm Or As Your Request
Weight:
186kg/m(Standard),168kg/m(non-standard)
Color:
Optional
Condition:
New
After-Service:
Offer
Supply Ability
Supply Ability:
30 Set/Sets per Month hydraulic core drill machine
Packaging & Delivery
Packaging Details
Packing With Standard Wooden Box
Port
ShangHai Or As Your Request
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 15 To be negotiated
Video Description

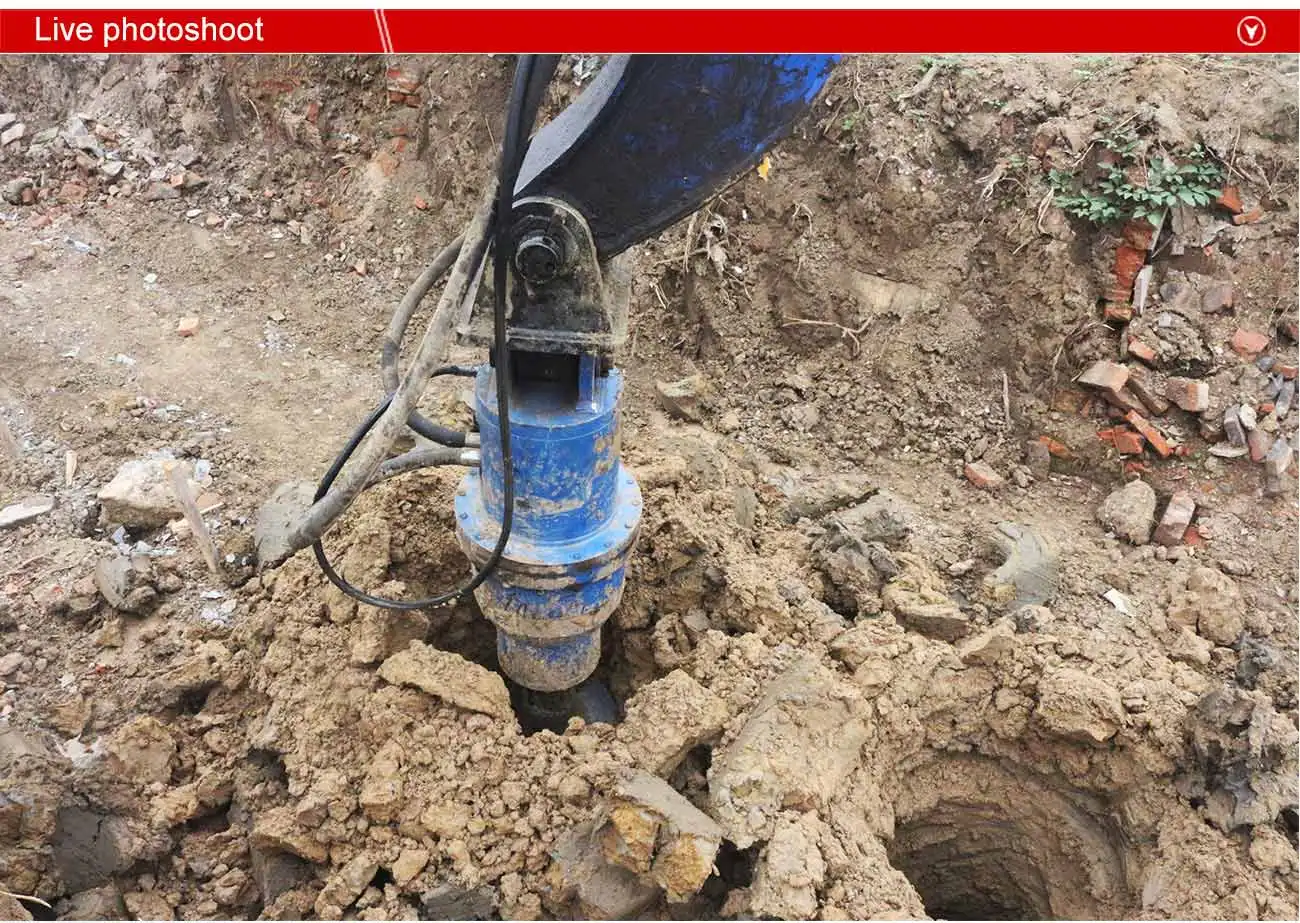

BEIYI Mini Excavator Mounted Hydraulic Powered Earth Auger Drill

Product Description

Excavator Operation Earth Drill is mainly composed with power head and auger. The power head and auger are fixed together. Auger is composed of screw blade and bit on the end of the auger, there is also teeth on the end of the auger. Simple construction, stronger drill ability, low production cost, high flexibility .Our Excavator Operation  Ground Drilling Equipment apply to pore forming operation of tree planting, telecom, electric power, municipal garden, highway, railway etc

Advantages

 1.R&D Team:

Our company has a highly skilled and professional R&D team. We always adhere to continuous innovation and the pursuit of excellence in developing our products.


2.Quality assurance:
Our company has one of the most stringent quality control systems, from our feed testing and product inspection to the final inspection process. Strict quality process control and management ensures product quality and accountability.

3.Inspection of Raw Materials:
Our Company has a professional metal analysis room and advanced preliminary heat-treatment equipment. We have strict standards when inspecting the material of each our products.

4.Production Equipment:
We have highly advanced precision manufacturing equipment which are produced in countries such as Germany, Switzerland, and Japan with strict control  of excellence.

5.Our gearbox is constructed as a lightweight component with a compact structure. It consists of a wide range of reduction ratios, output torque, smooth motion, impact resistance, braking power, reliability, durability, and so on.  Our power head has two class of swing assy and the output shaft is not fixed so that when it is broken, you don't need to change the whole body.

6.Warranty:
We offer 6 months warranty time for the power head.





Ordinary drill pipe(Including drill teeth and drill bit)



Wear-resisting drill pipe (including carbide teeth and carbide drill)



Soft rock drill pipe(including rock teeth and rock drill)



S4 : 100mm,150mm,200mm,225mm,250mm,300mm,350mm,

        400mm,450mm,500mm,600mm,750mm,900mm



S5: 150mm,200mm,225mm,250mm,300mm,350mm,400mm,
        450mm,500mm,600mm,750mm,800mm,900mm



S6 : 150mm,200mm,225mm,250mm,300mm,350mm,400mm,
        450mm, 500mm,600mm,750mm,800mm,900m,1M,1.2M

Performance Parameter

ModelUnitBY-AD60BY-AD80BY-AD150BY-AD200BY-AD300
Excavator ApplicationT 2-6T6-15T 15-20T20-25T25-40T
TorqueNm1094-41172570-99615307-209988314-3039327198-59403
PressureBar80-24080-24080-26080-260160-350
FlowLpm25-9240-15080-17080-170100-250
Rotate speedRpm30-6820-4815-4812-2610-22
Output shaftmm65Rnd75Sq75Sq75Sq110Sq
Weightkg110115200298721

Max Auger Diameter

clay/Shale

mm300800110012001500
Max Auger Diameter Earthmm5001000150016002000



Please click products below to see more details
Main products



Trade show




Product Uses

 Our Excavator Operation  Ground Drilling Equipment apply to pore forming operation of tree planting, telecom, electric power, municipal garden, highway, railway etc

Packaging & Shipping

All our products are packing with standard wooden box and We will choose the most suitable rapid economic logistics for you or you can choose your trust logistics.

Our Services

We can offer professional technical supports and good after sale service for your orders.

We have a stronger R&D team who can develop and produce the special machines according to your request
We will keep in touch with you to follow up the product's detail service situation and

accept compliants clearly record and maintain it for further reference



Company Information

BeiYi was established in 2000 based in Wuxi with a 5,000-square-meter workshop. we are fully committed to producing technologically advanced excavator parts and construction equipment. Our product own high reputation in Southeast Asia, Oceania, North America, Africa, Mid East, Eastern Asia, Central America, Western Europe......
